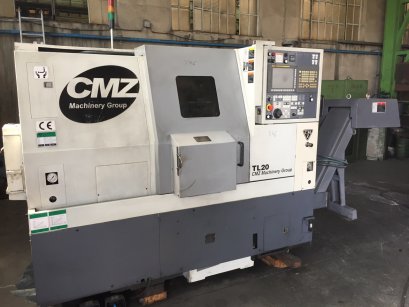

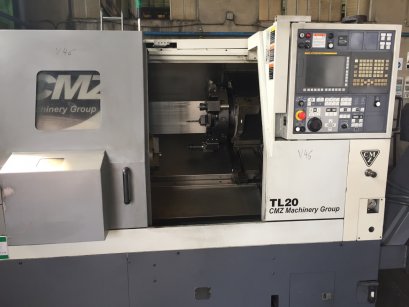

Attachments:   CNC Lathe CMZ model TL-20.pdf,

YOM:         2008

Control: Fanuc 32i T

Swing over bed:        680 mm

Swing over carriage:         510 mm

Max Turning Diameter:         430 mm

Distance between points:         730 mm

X travel:         240 mm

Z travel:         640 mm

Rapid Feed X:         18.000 mm/min

Rapid feed Z:         24.000 mm/min

Bar cross:         66 mm

Spindle cross:         73 mm

Plare diameter:         210 mm

Spindle power:         22 Kw

Tailstock Quill diameter:         90 mm

Positions Turret:         12

Machnie weight:         5.500 kg

Machine dimensions:         2322x1603x1800 mm
