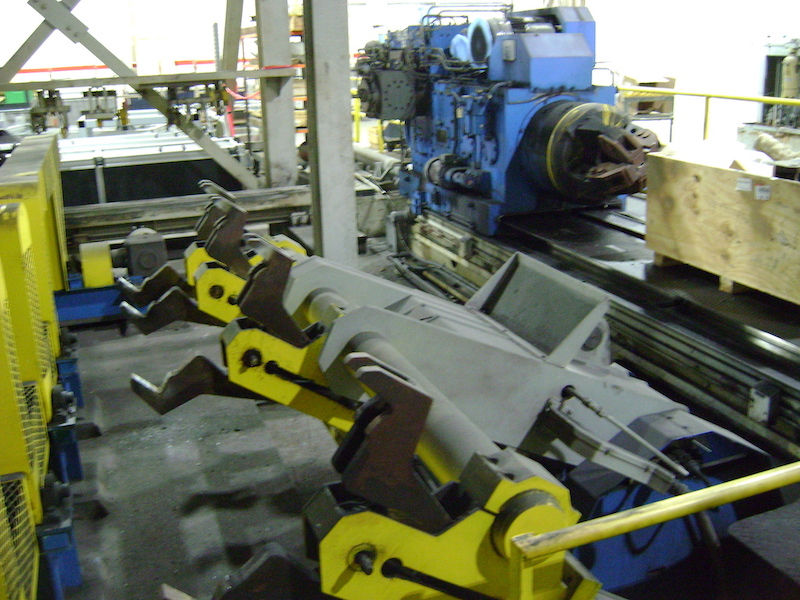

Second Hand Radial Forging Machine
Manufacturer: GFM (Austria)
Model: SX-16
Year: 1983 / 2006 / 2012 (worked only 9352 Hours, after last upgrade)
Machine number: 8006
• The machine has a GFM Austria CNC 6000 control (based on Siemens), the modernization made in 2005 by GFM Austria
• In 2005 also the oscillation brake has been replaced by a hydraulically operated oscillation system
• In 2012 a major mechanical and electric overhaul has been made by GFM
• Mentioned machine to be supplied complete of all components as seen in the pictures (except unloading table as can been seen in Item 28 from general layout), including available spare parts, available documentation, available manuals and drawings


Technical Specifications

CNC Siemens based original GFM CNC 6000
Numbers of Hammers: 4
Forging force: 800 Ton (200 t per Hammer)
Strokes per minute: 580
Diameter of adjustment range: 100 mm
Forge eccentricity: 6 mm
Hammer length: 326 mm
Maximum diameter of forging regarding structural and tool steel:
circular cross section – Ø160 mm
square cross section – 140 mm
Maximum length of forging at lateral unloading: 4000 mm
Min and Max diameter of mounting in manipulator: 30-160 mm
Feed of manipulator A: 4800 mm
Feed of manipulator B: 5200 mm
Load capacity of manipulator: 5 KN
Passage through manipulator: Ø111 mm
Manipulators rapid traverse: 500 mm/s
Feed speed of manipulators (stepless adjustment): 15÷200 mm/s
Cooling water pressure: 3÷5 bar
Temperature of inlet water: max. 30˚C
Cooling water consumption: 34 m3/h
Pipe diameter for cooling water: 2”
Compressed air pressure: min. 5 bar
Pipe diameter for compressed air: Ø20 mm
Consumption of compressed air: 1,5 Nm3/h
Power supply (nominal power): 450 kW
Operating voltage: 450 V, 60 Hz
Control voltage: 115 V, 60 Hz, 24 V DC
Power of main engine: 300 HP
Power of pump motors: 188 HP
Power of manipulators motors: 2x40 HP
Maximum height of machine above the floor level: 2100 mm
Maximum length of machine: 26840 mm
Maximum width of machine: 13800 mm
Machine net weight: 117500 kg
