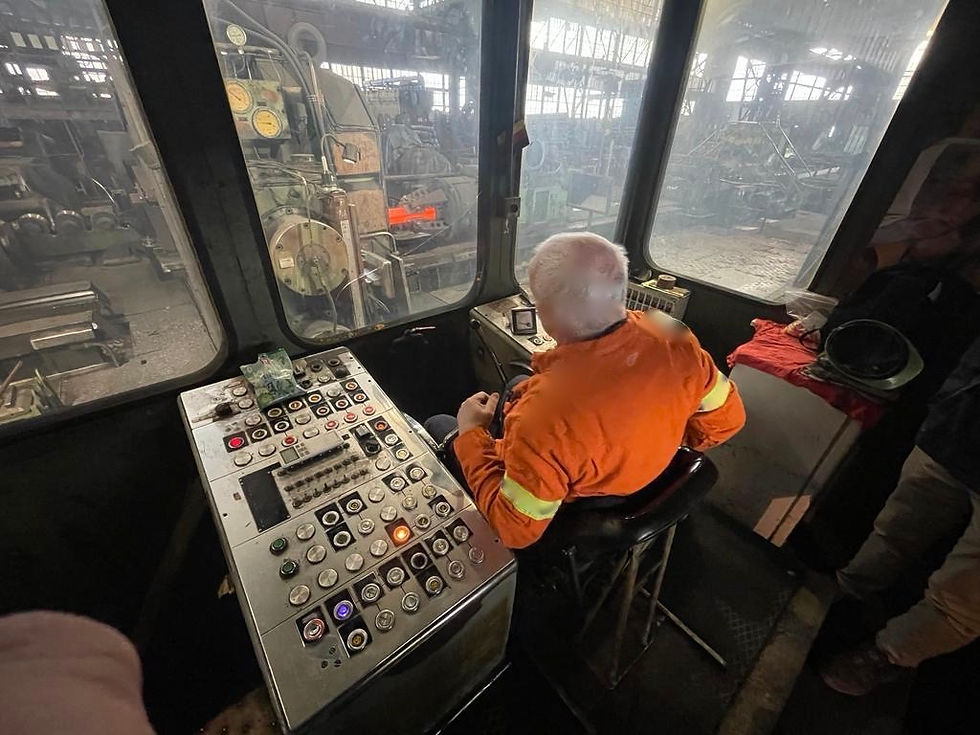

GFM SX-25 New 1970 complete modification 1994 by GFM

Technical data

No of Hammers: 4
Forging force: 350 T
Hammer stroke / min: 450/min
Hammer length: 300 mm
Max. adjustment of forging hammer: 110 mm
INPUT
Max. forging dimensions Carbon Steel: 250 mm / round
180 mm / square
Max. forging dimensions Tool Steel: 220 mm / round
170 mm / square
Flat Max. 190 x 130 mm
Input max. piece length: 2.950 mm
Input minimum piece length: 900 mm
OUTPUT
Min./ Max. forging dimension “Tool Steel”: 60 mm / 160 mm
Output max. piece length: 6.500 mm
Grip DIA of manipulator: 250 mm DIA
Rapid traverse of manipulator: 400 mm/sec
Feed speed of manipulator: 10 - 150 mm/sec
Total connected power: 435 kW 380 V, 50 Hz
Pressure of cooling water: 3 – 5 atm
Water consumption: 40 m3/h
Pressure of compressed air: 5 - 10 atm
Consumption of compressed air: 2 M3/min
